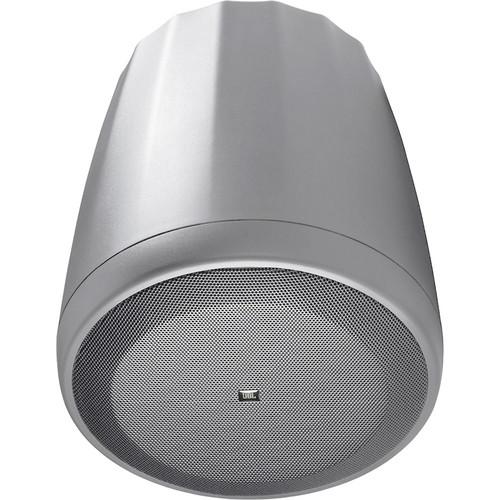

The Control 47C/T features extended bass performance with a wide 120° of coverage that allows fewer speakers to cover a large space. Ideal for a wide variety of applications, the Control 47C/T is perfect for settings ranging from restaurant and retail to large casinos and beyond. JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A. 09-12 Technical Manual JBL C67P/T-WH SPECIFICATIONS ACOUSTIC & ELECTRICAL SPECIFICATIONS. Buy JBL Control 67HC/T Narrow-Coverage Satellite Pendant Speaker (Black, Pair) featuring Compact Design, 6.5" Woofer with Silk-Dome Tweeter, Radiation Boundary Integrator Technology, 75° Conical Coverage, 75W Power Handling, 60W Multi-Tap Transformer, Full Grille. Review JBL 67 HC/T. NOTE: Priced individually, sold in pairs. The Control 67P/T is a high output, full-range, two-way pendant-type loudspeaker that provides superb sound reproduction and very consistent, wide coverage for rooms with open architecture ceilings and other locations where a pendant form factor is desired. View all results for jbl control at Sweetwater — the world's leading music technology and instrument retailer! Shop Sweetwater inSync SweetCare Events Careers Used Gear Marketplace (800) 222-4700 Talk to an expert! Contact Us We're here to help. JBL Control 67P/T Speaker Pair - Black.
Key Features:
In your world, superior sound is essential, so slip on a pair of JBL LIVE400BT wireless on-ear headphones. Enjoy the power of JBL Signature Sound and the convenience of. View and Download JBL Control 47C/T user manual online. Control 47C/T Speakers pdf manual download. Also for: Control 47lp, Control 45c/t, Control 42c, Control 47hc, Control40cs/t, Control 40cs/t.
᭤
Extended bandwidth, extremely smooth
frequency response.
᭤
Fully outdoor-capable design, featuring
WeatherMax™ multi-layer grille.
᭤
120° x 110° HF coverage.
᭤
150 Watt transformer for 70V or 100V
lines, with 4
Ω
thru.
᭤
SonicGuard
®
overload protection.
᭤
250 mm (10 in) fiberglass/Kevlar
®
cone LF
woofer, with neodymium magnet coaxial
125 mm (5 in) anodized aluminum cone
MR, and 25 mm (1 in) titanium diaphragm
compression driver.
᭤
Includes InvisiBall
®
mounting hardware,
plus ten 6 mm attachment points for sus-
pension and optional U-bracket.
᭤
Sealed input panel cover and screw-down
input terminals.
Applications
The Control 30 utilizes high power compo-
nents, computer optimized horn and coaxial
component design, patent-pending cabinet manu-
facturing techniques, and a complex network to
achieve smooth high fidelity performance,
extended bandwidth and well-controlled, defined
coverage from a compact loudspeaker.
A symmetrical mid-high frequency horn allows
Jbl Control 67p/t Manual
use of the speaker in either vertical or horizontal
orientation. Smooth frequency response and
cone-midrange performance ensures excellent
sound character throughout the frequency band,
over the entire listening area.
The top-quality line distribution transformer,
designed for minimal insertion loss and reduced
saturation, allows use of either 70V or 100V dis-
tributed speaker lines. In bypass position, the
8 ohm impedance allows use of multiple speak-
ers on a loudspeaker line.
The included InvisiBall mounting method is
simple to install, aims easily and provides a high
degree of theft deterrence. InvisiBall allows hori-
zontal rotation of up to 41° off-axis and vertical
rotation of up to 36° (horn end inward) or 23°
(woofer end inward). Attachment points for the
optional MTC-30UB (-WH) U-bracket allows for
compact installation and is particularly useful for
low profile underbalcony applications.
Weather resistance has been maximized. The
neodymium magnet LF woofer has a fiberglass
and Kevlar composite cone, the surround is pure
butyl rubber, and the basket is rear loaded to
minimize exposure. The MR cone of the coaxial
mid-high driver is anodized aluminum with a for-
mulation EPDM rubber surround, and the HF
compression driver’s diaphragm is pure titanium.
The coaxial component is protected by an
acoustically transparent screen. The grille is ther-
moset composite coated and stands up very well
to UV as well as humidity. The grille is backed
with our WeatherMax multi-layer foam, which
prevents the direct incursion of water. Nickel/zinc
rust-resistant terminals ensure a secure input con-
nection. An MTC-PC2 sealed-entrance cover is
included to further protect the speaker’s termi-
nals.
JBL’s exclusive SonicGuard overload protection
is virtually inaudible to the listener, ensuring reli-
ability while providing full fidelity sound.
Available in black or white (-WH), the cabinet
will accept a variety of paints to match any
décor.
Specifications:
Frequency Range (-10 dB)
1
: 38 Hz – 17 kHz
Frequency Response (± 3 dB)
1
: 40 Hz – 16 kHz
100 Hr Power Capacity
2
: 500 Watts Continuous Program Power
250 Watts Continuous IEC Pink Noise
Maximum SPL @ 1m
3
: Short-Term: 123 dB; Long-Term: 117 dB
Nominal Sensitivity
4
: 93 dB, 2.83V @ 1m (3.3 ft)
Nominal Coverage Angle
5
: 120° H x 110° V
Directivity Factor (Q): 5.2, averaged 500 Hz to 10 kHz
Directivity Index (DI): 7.1 dB, averaged 500 Hz to 10 kHz
Nominal Impedance: 4 ohms
Crossover Type: 3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF,
3rd order High Pass, HF, plus conjugate shaping circuitry.
Transformer Taps: 70V: 150W, 75W, 38W, 19W
100V: 150W, 75W, 38W
Thru Position: 4
Ω nominal
Recommended High-Pass: See Chart
Jbl Control 67p T User Manual Cordless Phone
Transducers:
Low Frequency: 250 mm (10 in) fiberglass/Kevlar
®
cone with pure butyl rubber sur-
round, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet
Mid Frequency: 125 mm (5 in) anodized aluminum cone with EPDM rubber
(Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in)
voice coil on fiberglass former
High Frequency: 25 mm (1 in) compression driver, pure titanium diaphragm with
patented JBL diamond surround
Physical:
Enclosure Material: High Impact PolyStyrene (HIPS) with 10% glass fill plus patent-
pending internal 5 mm foamed polyurethane secondary mold
Grille: Thermoset composite coated steel, WeatherMax multi-layer foam
Overload Protection: SonicGuard full range power limiting to protect network and trans-
ducers.
Environmental: IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray,
temperature & UV. Passes Mil-Std-202F for salt spray.
Termination: Screw-down terminal strip, zinc plated copper base, nickel plated
metal screws/washers. Accepts up to 9 mm outside 4 mm inside open
lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm
2
).
Safety Agency Rating: Transformer is listed per UL1876
Colors: Black or white (-WH)
Dimensions (H x W x D): 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in)
Weight (ea): 18.9 kg (42 lb)
Shipping Weight (ea): 20.3 kg (45 lb)
Included Accessories: 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x
305 mm InvisiBall Hex wrench.
Optional Accessories: MTC-30CM (-WH) to install speaker down from the ceiling.
MTC-30UB (-WH) U-Bracket
1
In Half Space
2
Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor for 100 hours continuously. Continuous
Program Power is defined as 3 dB above the Continuous Pink Noise Rating and is a conservative expression of the system’s
ability to handle normal speech and music program material.
3
Calculated from sensitivity and power handling, exclusive of power compression.
4
Half-space, averaged 100 Hz to 10 kHz
5
Jbl Control 67p/t
500 Hz to 10 kHz
JBL continually engages in research related to product improvement. Changes introduced into existing products without notice
are an expression of that philosophy.
